Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules
Ask Latest Price
Brand Name:Speedata
Model Number:TT35
Certification:3C /FCC /ROHS /IP65 /1.5M drop
Payment Terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:10000pcs
Company Data
Active Member
Contact Person
Marketing
Business Type:
86-186-82381750
Business Type:
Manufacturer
Officials:
Office 01-2 08, Block D, 8 / F, Building 1-4, Yard A, 18 Zhongguancun South Street, Haidian District, Beijing
Quality:
Quality Certifitation Available
Product Details
Company Profile
Product Details

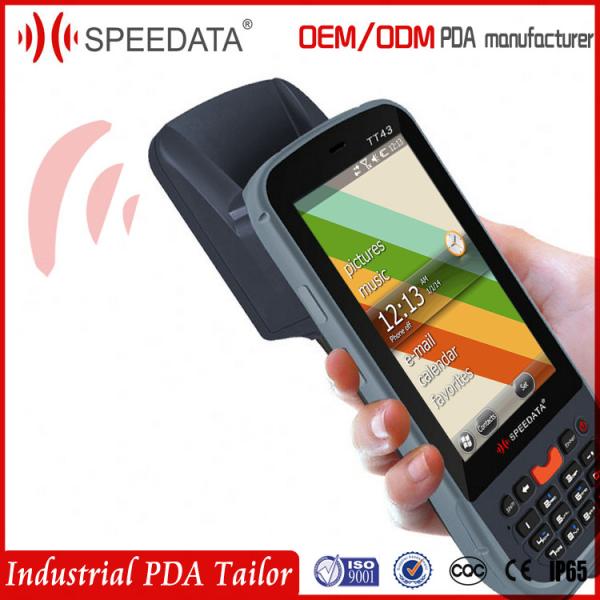

Rechargeable Handheld UHF RFID Reader Scanner With Smart Modules
Specifications of TT43 Long Range RFID Reader:
- 4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment
- 500MP camera with high definition ,it's easy to collect all kinds of image information
- Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.
- 3 compatible operating systems , not only to support the market's most fiery Android system, but also to meet with the Windows CE/Mobile systems, as well as secondary development. Customers can update the OS of the device to meet their needs and also can support compatibility function.
- Special structure and external cushion protection design, solid and wearproof body shape
- Matched with the machine seat charger, to ensure the charging interface durable,it's more quicker and easier
- IP65 Industrial Class, 1.8M drop protection
- Multiple Functions optional: card reader, printer, fingerprint, infrared reader, temperature, etc
Fundamental Parameters of Long Range RFID Reader:
| Development Environment | |
| Operating System | Windows Mobile 6.1/6.5 (Optional 1) |
| Windows CE 6.0 (Optional 2) | |
| Android 4.0.3 | |
| SDK | Software Development Kit |
| Language | C#, java |
| Tool | Microsoft Visual Studio 2005 |
| Fundamental Characteristics | |
| CPU | TI AM3715 A8 1Ghz |
| Memory | 512MB DDR RAM + 512MB Frash ROM |
| Storage | Micro SD/TF card max.32GB expansion |
| Display | 4.5-inch IPS 854*480 (Without Transflective screen) |
| 4-wire resistive touch screen | |
| Communications | |
| WWLAN | Without modem (Optional 1) |
Huawei MU609 Module: GSM band 850/900/1800/1900MHz, GPRS, EDGE UMTS 850/900/1900/ 2100MHz HSPA ) (Optional 2) | |
| WiFi | JORJIN WG7310 WiFi (802.11 b/g/n) |
| Bluetooth | JORJIN WG7310 Bluetooth |
| GPS | UBLOX 6010 |
| Physical Characteristics | |
| Dimensions | 175*76*28mm |
| Weight | more 400g with battery (according config) |
| Expansion Slots | 2*PSAM(option), 1*SIM |
| Battery | rechargeable li-ion battery 4500mAh 3.7V |
| Or rechargeable li-ion battery 2250mAh 7.4V (if with printer) | |
| 500-hours standby time, Up to 6-hours calling time, 4-hours charging time | |
| Camera | 5MP Camera |
| Video | Support still image and video capture |
| Audio | 3.5mm 4way plug |
| Keypad | Front 17keys, Side 4keys |
| Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
| USB Host/RS232 interface (Customized) | |
| User Environment | |
| Operating Temp. | -10 to 50℃ |
| Humidity | 10%RH - 90%RH (Non-condensing) |
| Protection class | IP65 |
| Drop resistance level | 1.5M |
Multiple modulars optional of TT43 android mobile barcode scanner:
| Barcode scanners (optional ) | |
| 1D scanner | NewLand:EM1300 1D Infrared barcode scanner -- most Cost-effective (option 1) |
| HoneyWell:N4313 1D Laser barcode scanner (option 2) | |
| Symbol:SE955 1D Laser barcode scanner (option 3) | |
| 1D/2D scanner | NewLand:EM3095 2D Scanner (option 4) |
| Symbol:SE4500SR 2D Scanner (option 5) | |
| RFID readers | |
| LF RFID reader | (134.2khz, ISO11784/11785, FDX-B/HDX) (Optional 1) |
| (125KHz) (Optional 2) | |
| HF RFID reader | (13.56MHz ISO 14443A/B ISO 15693) |
| NFC reader | (include 13.56MHz ISO 14443A ISO 15693) |
| UHF RFID reader | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) /ISO18000-6A,B compatibility in direct mode----with AS3992 shipset |
| UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) with R2000 shipset | |
| Biometric fingerprint (optional ) | |
| Fingerprint | UPEK TCS1 (meet the FBI’s FIPS-201) |
| Other Modules (optional ) | |
| PSAM | ISO7816 (SIM card interfance) |
| MSR | Compatible with one, two, three track. (without PCI, EMV security certification) |
| IC card reader | ISO7816 ID-1 |
| Printer | Integrate 2 inch Direct thermal line printing |
| Far Infrared Meter Reading | IEC62056-21 (IEC1107) communication protocol |
| 433Mhz | Require customers to provide 433Mhz wireless modules or specifications |
| Zigbee | Require customers to provide 433Mhz wireless modules or
specifications |
Mobile Handheld UHF RFID Reader Scanner with Smart Long Range RFID Reader 900mhz Modules
Mobile Handheld UHF RFID Reader Scanner with Smart Long Range RFID Reader 900mhz Modules
