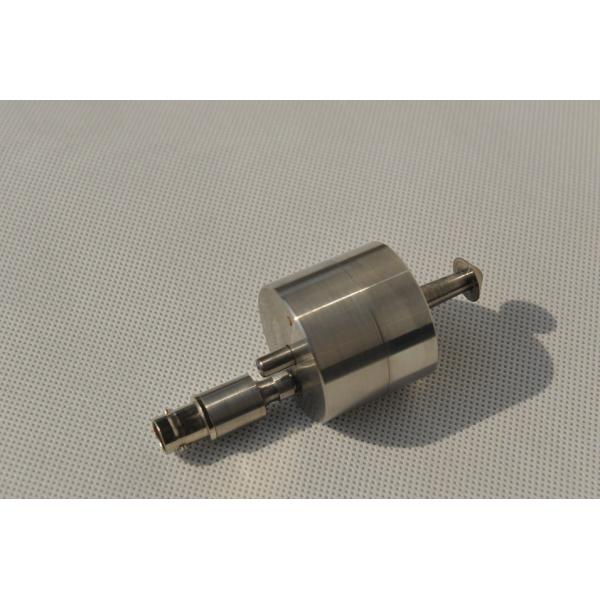

Portable Ultrasonic Micro Nebulizer With Cylindrical Atomization Head Structure
Ask Latest Price
Brand Name:Altrasonic
Model Number:HS-N50C
Certification:BV
Price:negotiation
Payment Terms:T/T, Western Union
Supply Ability:1000 units per year
Delivery Time:7 working days after received your payment
Company Data
Site Member
Contact Person
Hogo Lv
Business Type:
Manufacturer Trading Company
Officials:
North 5th floor, West technology park, West Wenyi Road, Zhongxin Road, Yuhang city, Zhejiang Province, China
Quality:
Quality Certifitation Available
Product Details
Company Profile
Product Details
Portable Ultrasonic Micro Nebulizer With Cylindrical Atomization Head Structure
Description:
Ultrasonic spray (FOG) is to use the energy of ultrasonic water or liquid scattered,
forming several microns to 100 microns in size of particles, used
for air humidifying, granulating, mixing liquid, promote chemical
reactions, spraying, molten metal powder etc.By breaking apart aggloomerated particles as they travel down the
nozzle body due to continuous ultrasonic vibrations along the
length of nozzle, resulting in the most effective use of functional
particles.
Applications:
Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on. The advantage is that it can atomize various kinds of liquid and it has Large atomizing volume, energy-saving, environmental protection. It has no plug, no abrasion.
Specifications:
Model | HS-N60 | HS-N50A | HS-N50B | HS-N50C | HS-N40 | HS-N30 | HS-N20 | HS-N15 |
Frequency | 60KHz | 50KHz | 50KHz | 50KHz | 40KHz | 30KHz | 20 KHz | 15 KHz |
Atomization Volume | 0.5L/H | 2 L/H | 2 L/H | 2 L/H | 10 L/H | 70 L/H | 100 L/H | 150 L/H |
Average Particle Diameter of Fog | 20um | 28um | 28um | 28um | 32um | 39um | 51um | 62um |
Power Consumption | 0.01 Degrees/Kg | 0.001 Degrees/Kg | ||||||
Atomization Head Structure | Cylindrical | Horn | ||||||
Power | 30W | 30 W | 30 W | 30 W | 60 W | 100 W | 300 W | 500 W |
The Application of Atomizing Media | Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on | |||||||
Competitive Advantage:
★ A major breakthrough in spray technology, you can spray a variety
of liquids.
★ Low power consumption, the fog of great energy saving.
★ No plug, no abrasion, no noise, no pressure, no moving parts.
★ Can be any combination to meet the requirements of the spray
volume.
★ The use of high-performance titanium and stainless steel.
Portable Ultrasonic Micro Nebulizer With Cylindrical Atomization Head Structure
Company Profile
Hangzhou Altrasonic Technology Co., Ltd
Hangzhou Altrasonic Technology Co., Ltd
Located in Hangzhou, China, was found in 2010. Altrasonic has many years' experiences in the business of industrial ultrasonic components and ultrasonic devices in China. We use this experience and experise to provide only the best ultrasonic devices and components based on the competitive price.
Altrasonic equipment focused on the r&d of high power
ultrasound applications, Altrasonic has absolute leading
core technology, the most stable and mature manufacturing
technology, rich experience, can provide direct
ultrasonic application scheme demonstrate, structure design, system
configuration and related parts production.
Altrasonic equipment cooperated with the key graphene
manufacturers, applied the ultrasound equipment in
graphene preparation process of industrialization firstly, and make
the ultrasonic be a good supporting to the large-scale preparation
of the high quality and low cost graphene materials.
Our company mission:Ultrasonic Technology makes life easier.
WHY CHOOSE ALTRASONIC ?
• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Indonesia, Singapore, Türkiye, Malaysia, Germany, and other country still being
discussing.
• Innovation. Altrasonic R&D and marketing staffs to constantly explore
new applications in the field of ultrasound, and the
importance of team spirit of cooperation.
• Half the price, double the value. Every product reach you have been test in our company three times,
and with 72 hours continous working, to confirm it is
well before you get it. Also we always learn from foreign company,
to
upgrade our products.
• Good components. Ceramic mainly imported from German, and using the superior
quality aluminum, titanium raw materials.
• Individual Customize. We can customize products according to your requirements, Also
supply OEM service.
Customize ultrasonic solution for different applications.
